Text Editor makes it possible to insert inline frames to a document. Inline frames, or iframe elements, allow you to insert a frame containing another document in the middle of your document.

In order to insert an iframe, simply press the button on the toolbar. The IFrame Properties dialog window that will open lets you set configuration options that define the inline frame URL, its size, display properties, or advanced styling settings.

The IFrame Properties dialog window includes two tabs that group iframe options:

• General
• Advanced

For general information on using dialog windows please refer to the Dialog Windows section of the User's Guide.

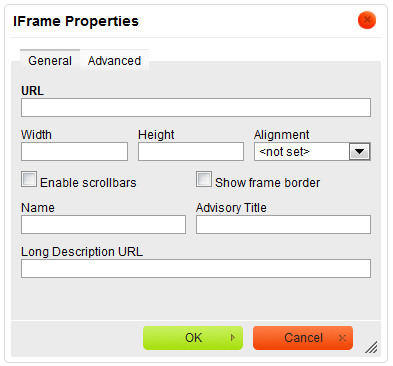

General

The General tab is the default tab that opens after you press the button on the toolbar. It allows you to set the iframe URL and configure the way it will appear in the document.

Below is an overview of all General tab elements:

• URL - the web address of the inline frame. The inline frame may be located on the same server as the web site you are currently in or on an external server.
  • External server: If you want to use an external address, use the full absolute path.

    Example:

    http://example.com/iframe.html

  • Local server: If the inline frame is located on the same server, you can use a relative path that omits the domain name and starts with a slash.

    Example:

    /pages/iframe.html

• Width - the width of the inline frame in pixels.
• Height - the height of the inline frame in pixels.
• Alignment - the alignment of the inline frame in the document. Available options are Left, Right, Top, Middle, and Bottom.

• Enable scrollbars - if this option is checked, when inserted content is larger than the space available in the iframe element, scrollbars will be displayed to enable the user to see the whole inline document.
• Show frame border - if this option is checked, the inline frame will be displayed with a border.

• Name - the name of the iframe element (name attribute).
• Advisory Title - the text of the tooltip that is shown when the mouse cursor hovers over the inline frame (title attribute).
• Long Description URL - the web address of an HTML page containing a longer description of the inline frame (longdesc attribute).

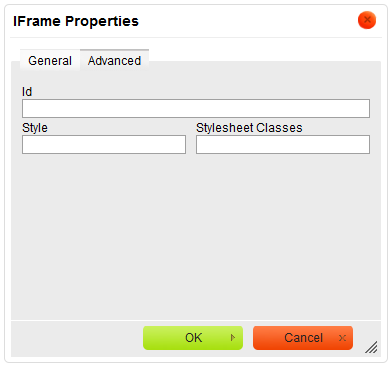

Advanced

The Advanced tab lets you configure additional inline frame options such as assign it an ID, a class, or CSS style properties. It is meant for advanced users with knowledge of HTML as well as CSS, and gives nearly endless possibilities as far as the presentation of the iframe is concerned.



• Id - a unique identifier for an inline frame element in the document (id attribute).
• Style - CSS style definitions (style attribute). Note that each value must end with a semi-colon and individual properties should be separated with spaces.
• Stylesheet Classes - the class of the inline frame element (class attribute). Note that an iframe element might be assigned more than one class. If this is a case, separate class names with spaces.

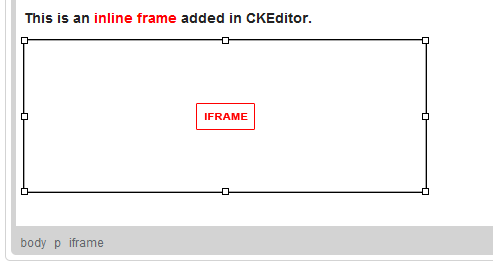

Using IFrames

To insert an inline frame into your document, press the button on the toolbar. When the IFrame Properties dialog window is displayed, configure the inline frame settings, including the obligatory URL field and the display properties. Once you click OK, the icon along with the iframe placeholder will appear in the document.
